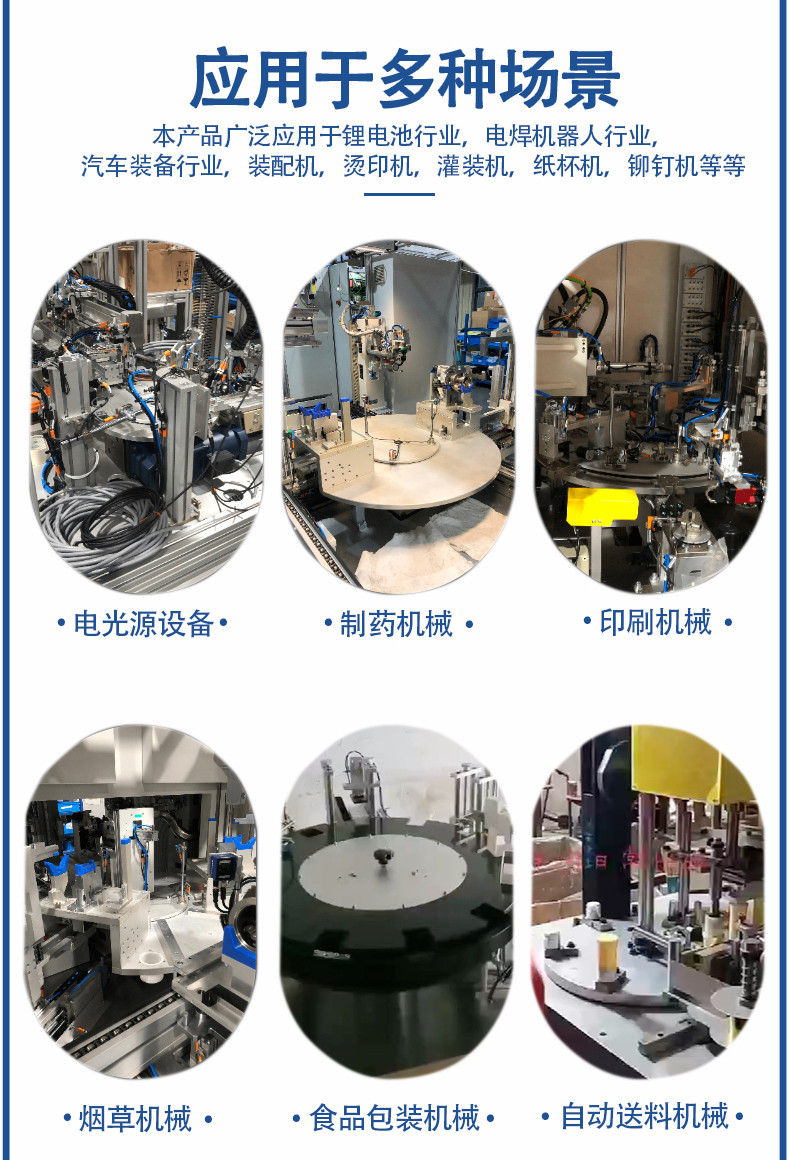

The cam dividers produced by our company are widely used in high-speed notching machines, brazing machines, fully automatic wire stripping and punching machines, automatic assembly machines, automatic assembly machines, automatic feeding machines, automatic force assembly machines, automatic processing machines, printing machines, pad printing machines, screen printing machines, hot stamping machines, vacuum forming machines, automatic inspection machines, automatic packaging machines, fully automatic lead wire welding and dynamic press machines, automatic filament winding machines, printing machines, food packaging machines, glass machines, ceramic machines, chemical machines, electronic equipment, CNC machine tools, processing centers and other automated machines that need to convert continuous operation into stepping motion. The divider has the advantages of high step positioning, stable high-speed operation, large transmission torque, and self-locking during positioning. The LVNCAM divider of the LVN Automation is an ideal product to replace traditional intermittent mechanisms such as grooved wheel mechanisms, incomplete gear mechanisms, and ratchet mechanisms.

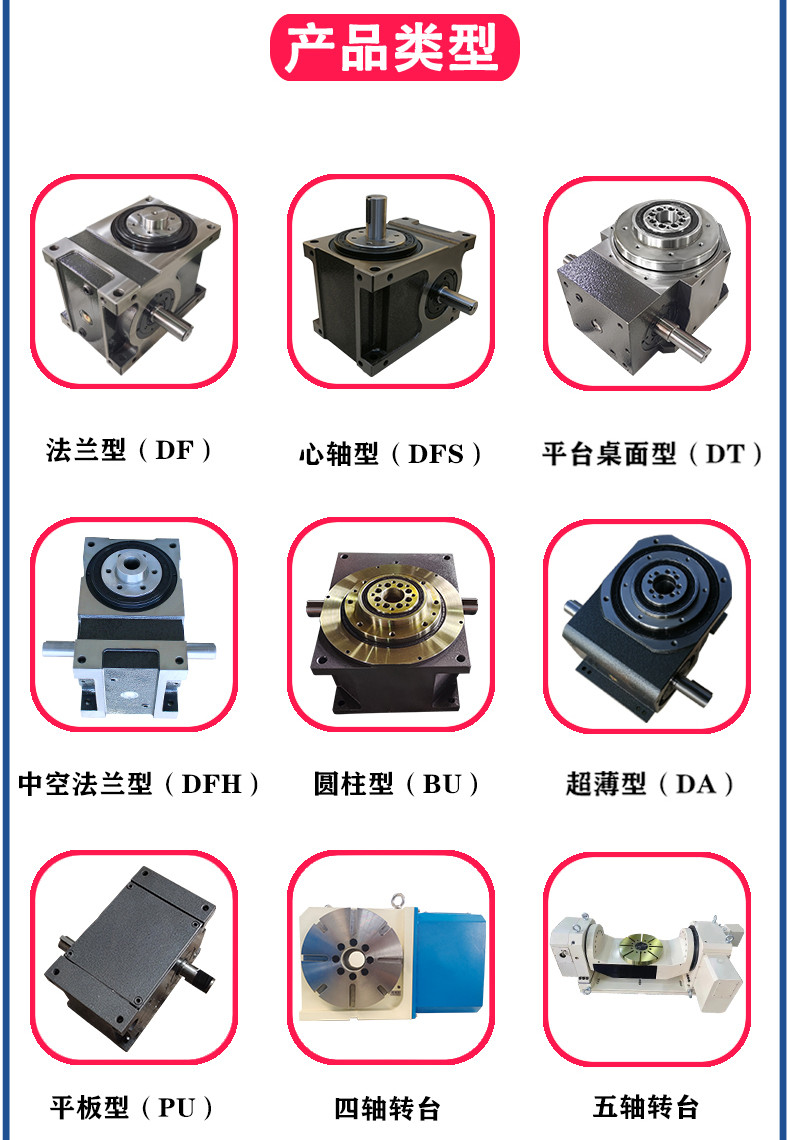

Spindle type (DS)

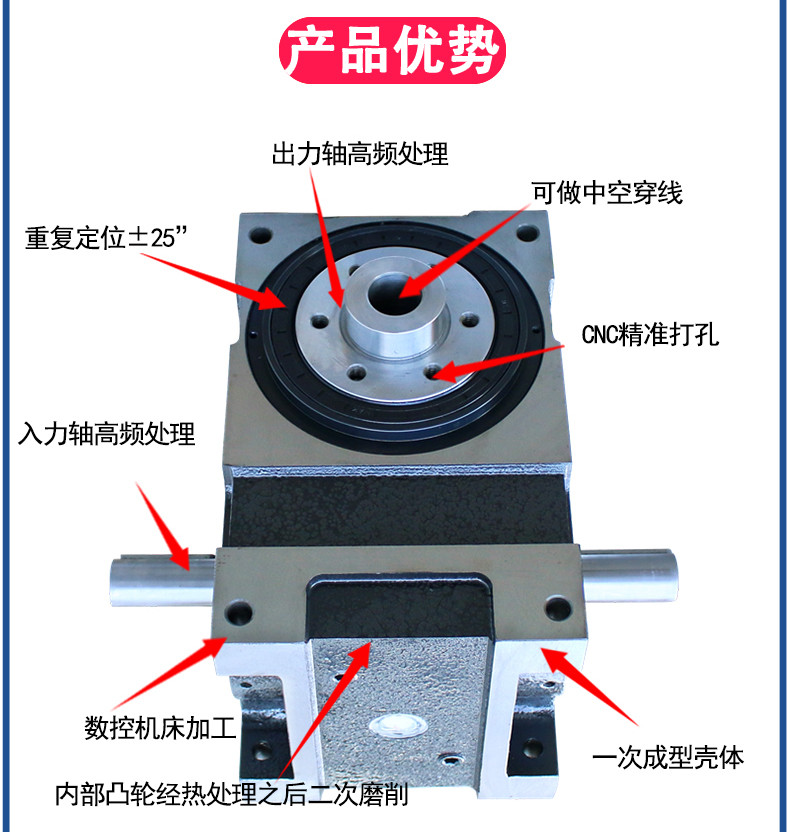

This series of machines is our company's reinforcement and improvement on the basis of the mandrel type. The difference from the mandrel type (DS) is that it has a flange surface, which can not only output by the shaft, but also be fixed to the flange surface, which is more stable and reliable. At present, it has largely replaced the mandrel type divider.

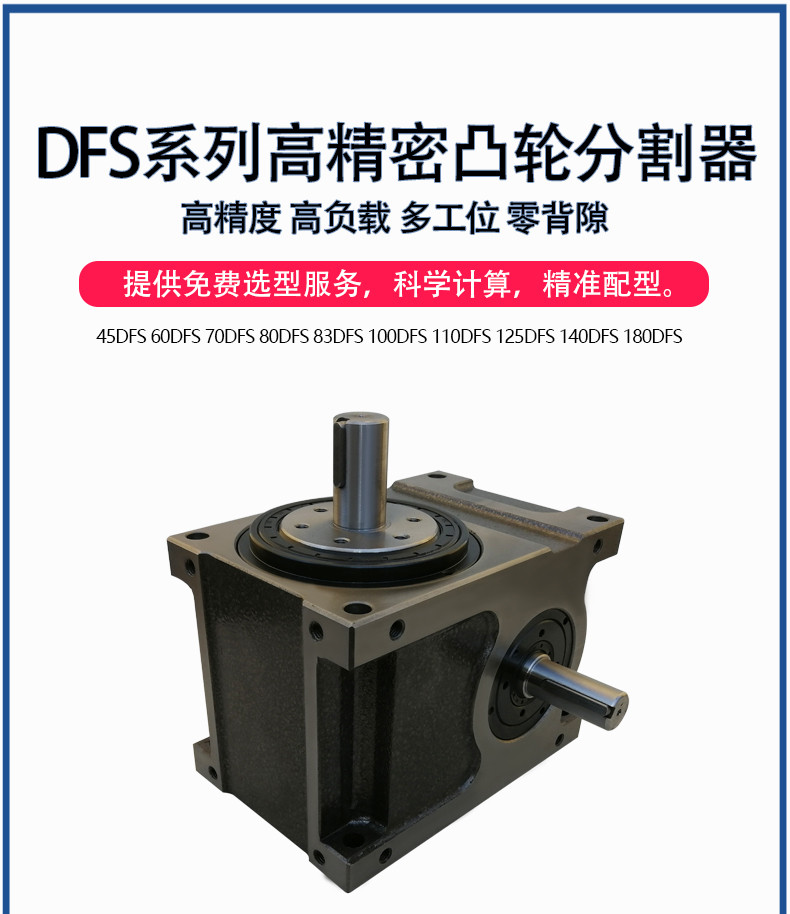

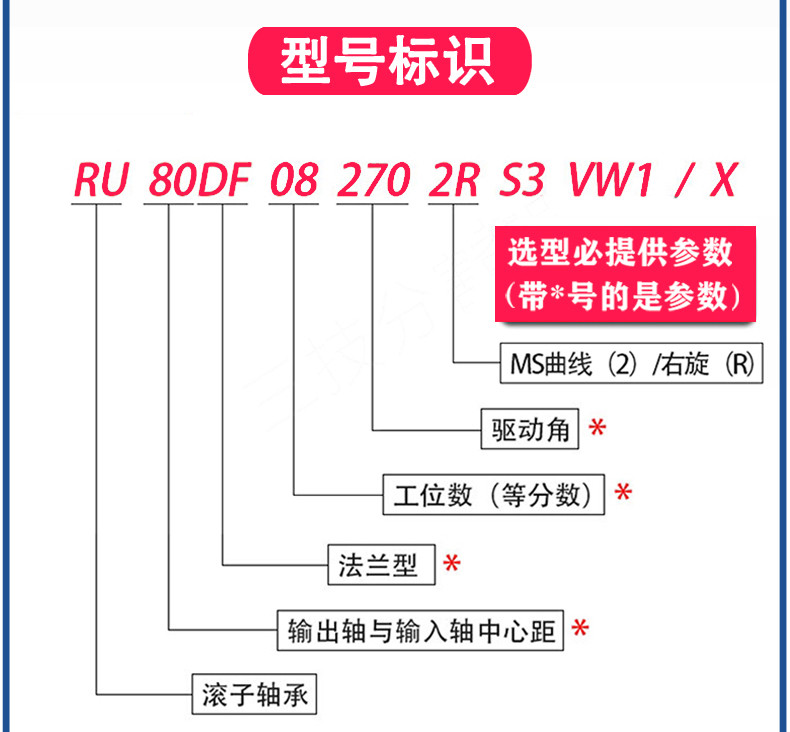

The specifications of spindle type cam dividers are: 45DS, 60DS, 70DS, 80DS, 110DS, 140DS, 180DS

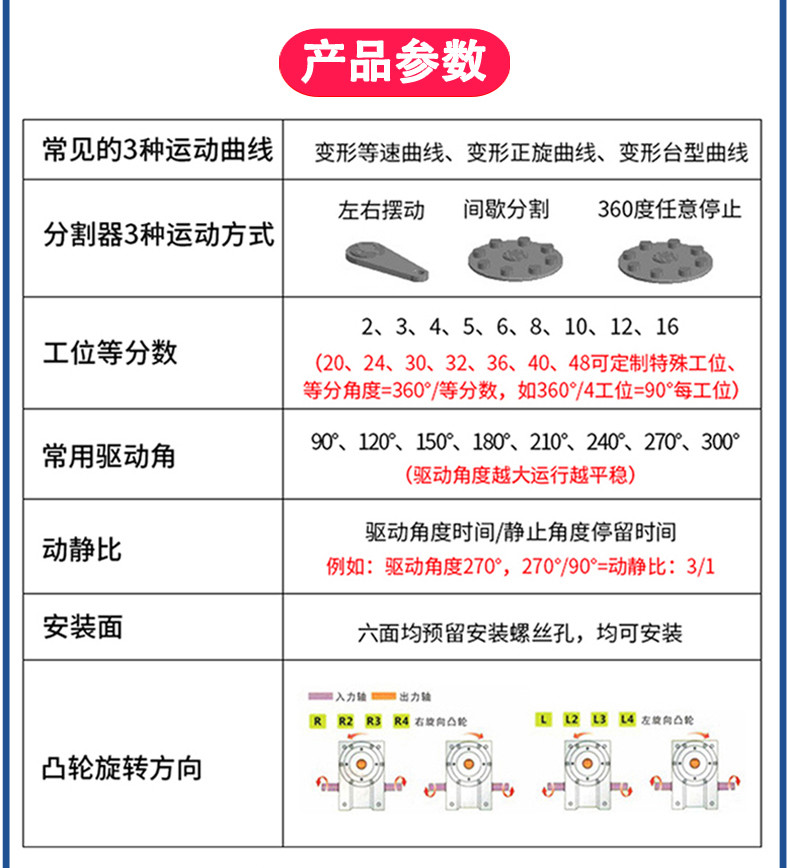

Number of divisions: 2 stations, 3 stations, 4 stations, 6 stations, 8 stations, 10 stations, 12 stations, 16 stations, 20 stations, 24 stations, 32 stations...

Drive angle: 90 degrees, 120 degrees, 150 degrees, 180 degrees, 220 degrees, 240 degrees, 270 degrees, 360 degrees...
