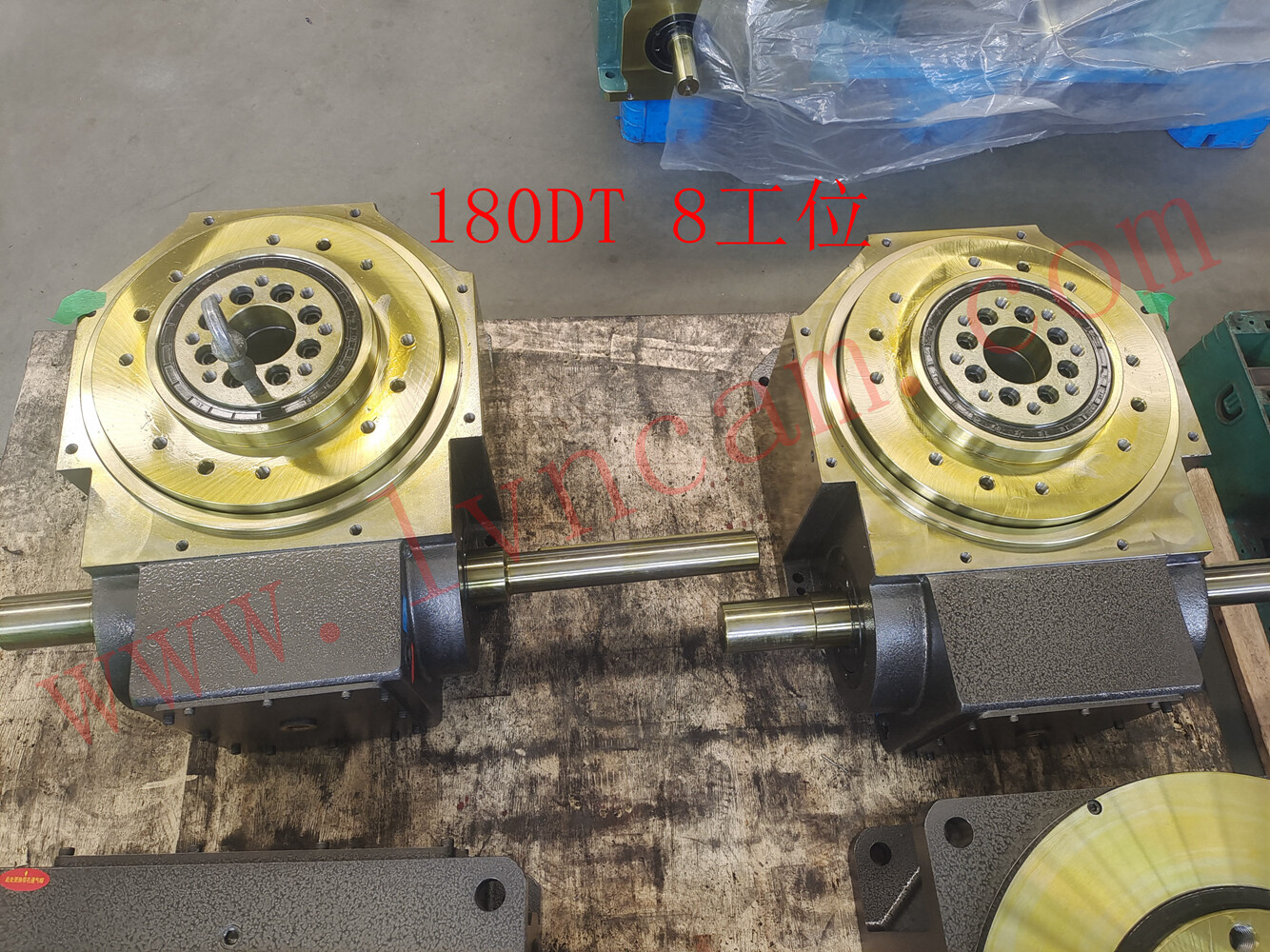

180DT-4-270R LVNCAM cam divider real shot

LN170-36-24S 170 four-axis CNC rotary table four parallel use case

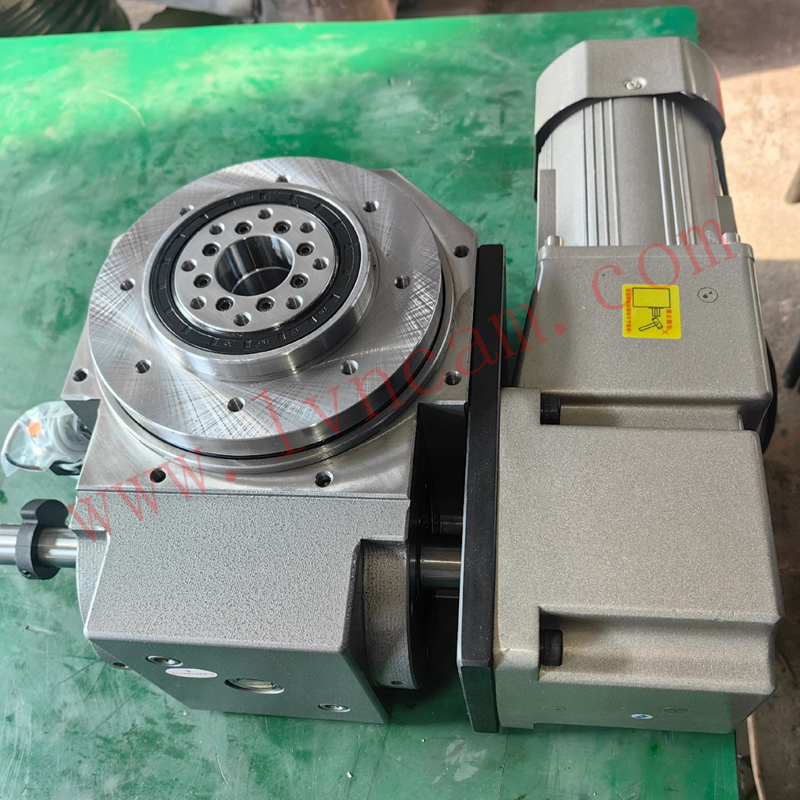

L80DT-8-LN003 Customer Selection Case

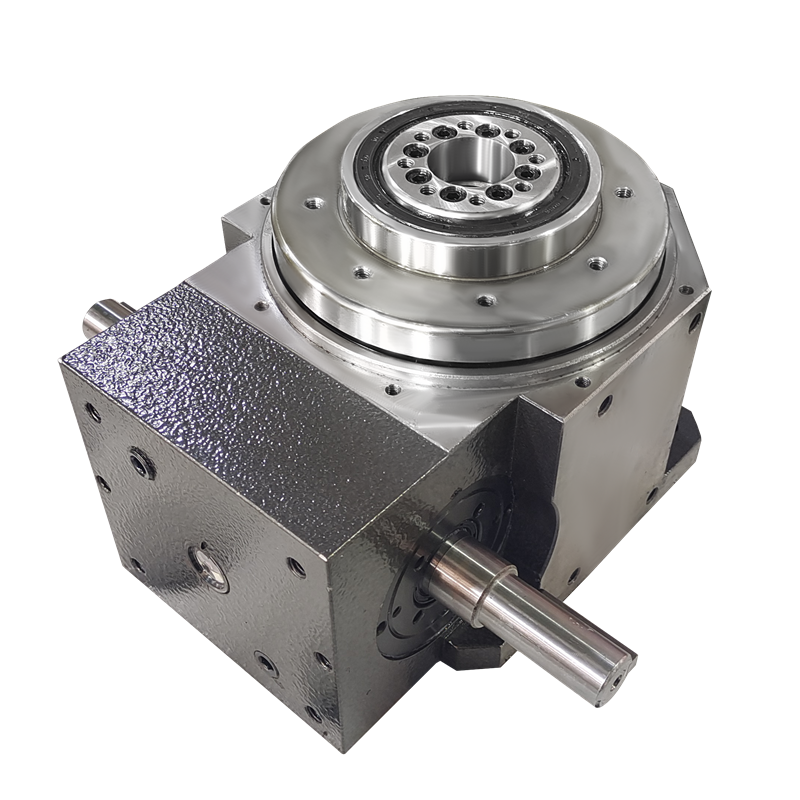

The size design characteristics of this series of models are similar to the flange type. They can withstand large axial loads and vertical radial pressures during driving operation. There is a raised fixed disk and a large-diameter hollow shaft at the output end. The power source's electricity, oil, and gas pipelines can be placed in the hollow hole. This series of models is widely used in various types of machinery and industrial machinery with heavy loads and automation equipment, and is used as synchronous automation intermittent drive, and is often used in the automotive industry.

In this equipment, the cam divider is hoisted and used. The divider only plays the role of precise feeding and does not bear the punching pressure from above.

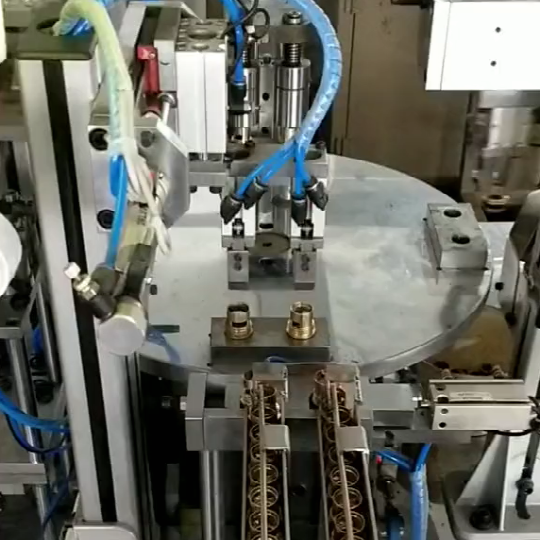

Application of cam divider in product assembly, 80DF-4-120R

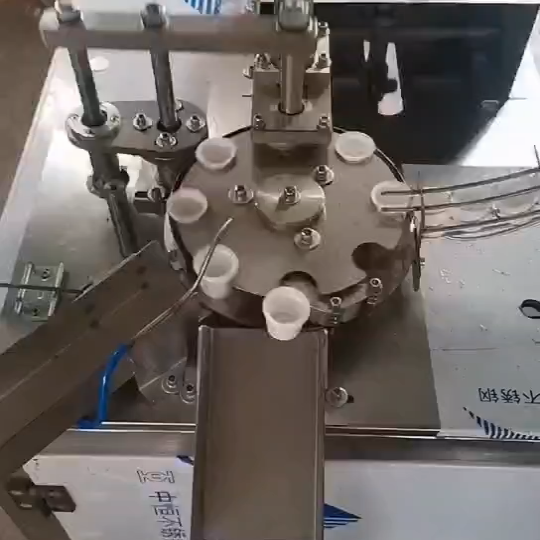

Application video of 60DF8-station automatic loading and unloading capping assembly machine, 8 stations, 120-degree range angle, the motor keeps rotating to improve production efficiency.

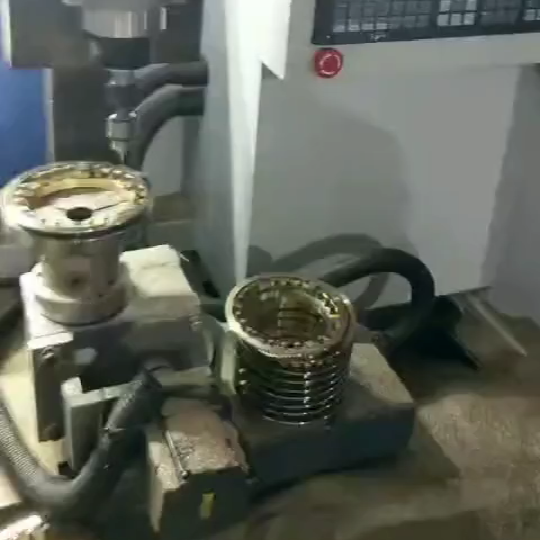

The application of 360-degree arbitrary rotation cam divider 60DFH12-360R small four-axis in the automatic drilling machine industry.

The 360-degree arbitrarily rotating cam divider is used in the drilling, chamfering and tapping machine industry. It is driven by a servo motor and can rotate at any angle, replacing four axes and reducing costs.

The waterproof four-position indexing plate is used in the automatic tapping machine industry. Compared with the conventional cam divider, the waterproof indexing box uses a different oil seal and internal structure, and has been waterproofed and rust-proofed in many aspects.

In the video, the customer uses 80DF, 8 stations, 270-degree drive angle flange cam divider, driven by 86 stepper motor, and controls the motor rotation according to the last action of the robot, and drives the divider to the next station. The control is flexible and each station works in coordination. 80DF-8-270R eight-station assembly machine

In the video, the customer uses a 36-station flange-type cam divider with a 1:2 dynamic-static ratio, that is, a drive angle of 120 degrees. The motor keeps rotating, and each station works together to integrate loading, processing, testing, and unloading, greatly improving production efficiency.

The size design characteristics of the ultra-thin platform desktop cam divider are similar to those of the platform desktop type. It can withstand large axial loads and vertical radial pressures in driving operation. There are raised fixed disks and large-diameter hollow shafts at the output end. It can be used with functional and static automation peripherals. The power source's electricity, oil, and gas pipelines can be designed in the hollow hole. This series of machines are widely used in heavy-load, multi-station automation equipment, machinery, and industrial machinery, etc., for synchronous automation intermittent drive. The main difference from the platform desktop type is the upper and lower heights, and it is mostly used in application scenarios with limited upper and lower space. .

The application of cam dividers in product packaging industry. The cam intermittent dividers produced by our company are widely used in high-speed notching machines, brazing machines, wire stripping and punching machines, assembly machines, automatic assembly machines, feeding machines, force machines, processing machines, printing machines, pad printing machines, screen printing machines, hot stamping machines, vacuum forming machines, automatic inspection machines, sorting machines, capacitor machines, capacitor sorting machines, resistor and diode equipment, automatic packaging machines, lead wire welding, filament winding machines, printing machinery, food packaging machinery, glass machinery, ceramic machinery, chemical machinery, CNC machine tools, machining centers and other automated machinery that require intermittent and stepping movements. The divider has the advantages of high stepping positioning, stable high-speed operation, large transmission torque, and self-locking during positioning. The LVNCAM cam divider of Luning Automation is an ideal product to replace traditional intermittent mechanisms such as grooved wheel mechanisms, incomplete gear mechanisms, and ratchet mechanisms.
