The cam dividers produced by our company are widely used in high-speed notching machines, brazing machines, wire stripping and punching machines, assembly machines, automatic assembly machines, feeding machines, force machines, processing machines, printing machines, pad printing machines, screen printing machines, hot stamping machines, vacuum forming machines, automatic inspection machines, sorting machines, capacitor machines, capacitor sorting machines, resistors and diodes, automatic packaging machines, lead wire welding, filament winding machines, printing machines, food packaging machines, glass machines, ceramic machinery, chemical machinery, CNC machine tools, machining centers and other automated machinery that require intermittent and stepping motions. The divider has the advantages of high stepping positioning, stable high-speed operation, large transmission torque, and self-locking during positioning. The LVNCAM cam divider of Luning Automation is an ideal product to replace traditional intermittent mechanisms such as grooved wheel mechanisms, incomplete gear mechanisms, and ratchet mechanisms.

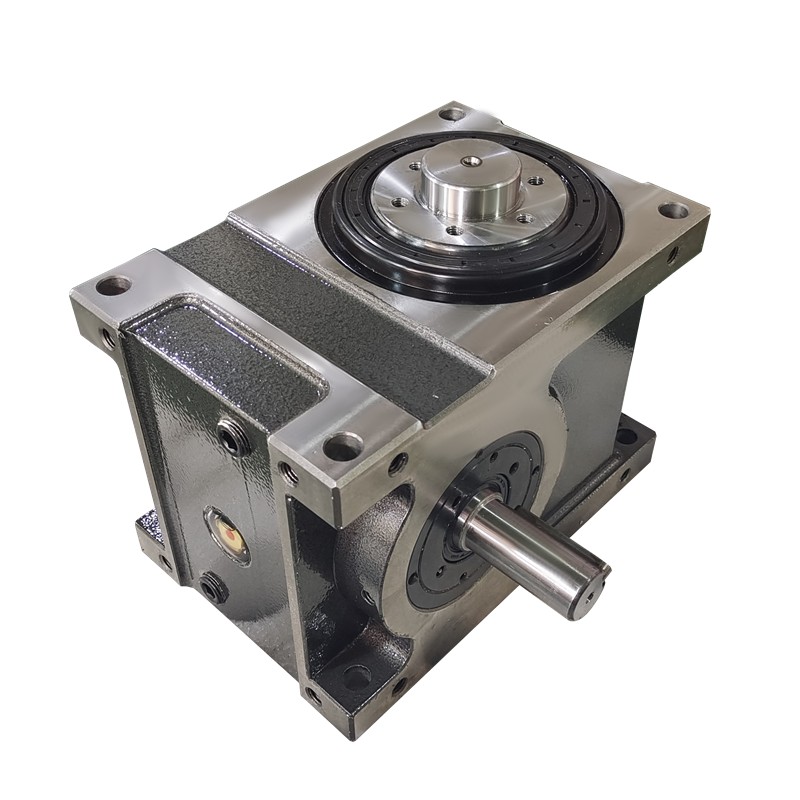

The flange type cam divider is heavy-duty and can withstand large vertical radial or axial pressure. Its output shaft is flange-type design.

There are flange centers, plate screw holes, positioning pin holes, and large fixing areas, which can make the connection more solid and stable. Suitable for larger loads

It is widely used in various types of disc processing machinery and similar industrial machinery, and automated intermittent drive components.

The specifications of flange type cam dividers are: 45DF, 60DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 180DF, 250DF, 350DF, and 450DF.

Number of divisions: 2 stations, 3 stations, 4 stations, 6 stations, 8 stations, 10 stations, 12 stations, 16 stations, 20 stations, 24 stations, 32 stations...

The number of divisions can be customized according to customer needs, and more than 100 workstations can be achieved.

Drive angle: 90 degrees, 120 degrees, 150 degrees, 180 degrees, 220 degrees, 240 degrees, 270 degrees, 300 degrees, 330 degrees, 360 degrees
