The cam dividers produced by our company are widely used in high-speed notching machines, brazing machines, wire stripping and punching machines, assembly machines, automatic assembly machines, feeding machines, printing machines, pad printing machines, screen printing machines, hot stamping machines, vacuum forming machines, automatic inspection machines, capacitor sorting machines, resistors and diodes, automatic packaging machines, lead wire welding, filament winding machines, printing machinery, food packaging machinery, glass machinery, ceramic machinery, chemical machinery, CNC machine tools, machining centers and other automated machinery that require intermittent and stepping motions. The dividers have the advantages of high stepping positioning, stable high-speed operation, large transmission torque, and self-locking during positioning. Shandong Lu Ning Precision Machinery's LVNCAM cam divider is an ideal product to replace traditional intermittent mechanisms such as grooved wheel mechanisms, incomplete gear mechanisms, and ratchet mechanisms.

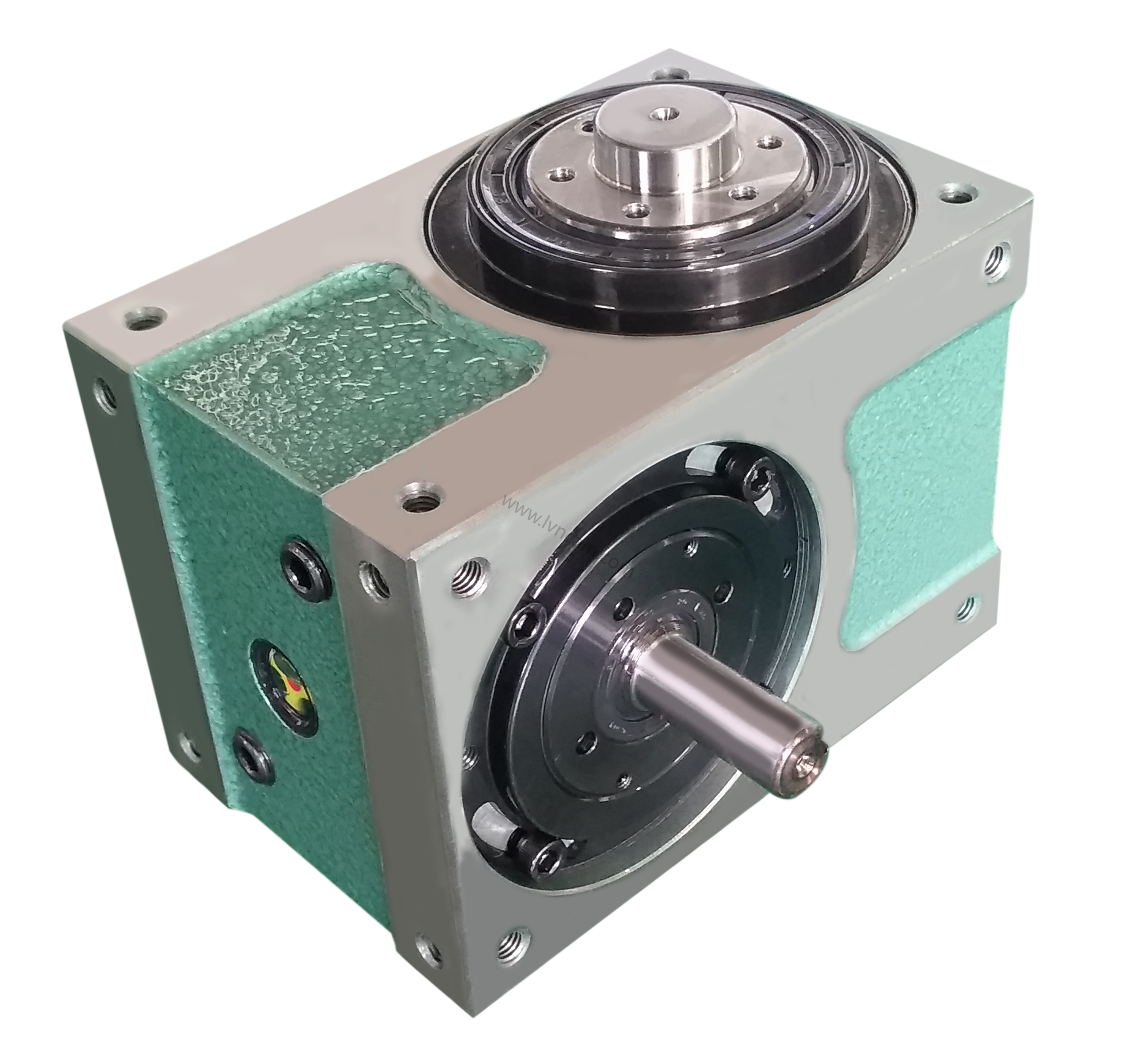

The flange type cam divider is heavy-duty and can withstand large vertical radial or axial pressure. Its output shaft is designed as a flange disc with a flange center, disc screw holes, positioning pin holes, and a large fixing area, which can make the connection more solid and stable. It is suitable for rotary disc drive occasions with large loads and is widely used in various types of disc processing machinery and similar industrial machinery, and automated intermittent drive components.

The specifications of flange type cam dividers are: 45DF, 60DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 180DF, 250DF, 350DF, and 450DF.

Number of divisions: 2 stations, 3 stations, 4 stations, 6 stations, 8 stations, 10 stations, 12 stations, 16 stations, 20 stations, 24 stations, 32 stations...

The number of divisions can be customized according to customer needs, and more than 100 workstations can be achieved.

Driving Angle: 90 degrees, 120 degrees, 150 degrees, 180 degrees, 220 degrees, 240 degrees, 270 degrees, 300 degrees, 330 degrees, 360 degrees.

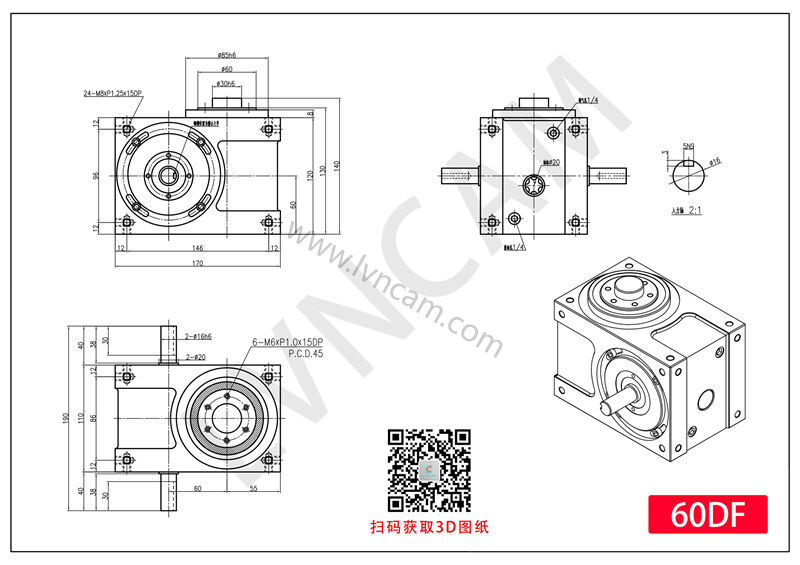

The 60DF cam divider is generally suitable for applications with a disc diameter of less than 400mm and a load weight of less than 20KG. The specific selection also needs to consider data such as the number of workstations, drive angle, and rotation speed, and the selection result is confirmed by calculating the motion inertia.
